Operation Microscope 1000L
Characteristics
- Olympus Original Optics with Zoom Magnification
- Olympus Quality Ensures high and Satisfied Resolution
- Stereo and Wide Field of View with Deep Depth of Field
- Coaxial Led Light or Halogen Lamp Illumination with Long Life Time
- Motorized Focus Adjustment with Foot Control
- Prism Design for Better Red Reflex

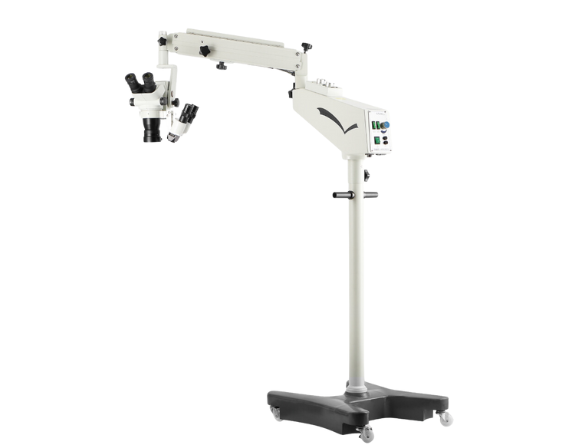

About Ophthalmic Operation Microscope 1000L
This 1000L surgical microscope is applied to do ophthalmic surgery. It applies Olympus optics head SZ51 or Eder optics. The
zoom magnification is from 4X to 20X with foot panel control for focus.
Technical Data
| Optics | Olympus® SZ51 |
| Eyepiece | 10X Wide Field |
| Observation Angle | 30° |
| Pupil Distance | 50~76mm |
| Diopter | ±5D |
| Magnification | 0.63/1.0/1.6/2.5/4.0 |
| Field of View | 10mm~63mm |
| Working Distance | ≥170mm |
| Focus Adjustment | ±20mm Foot Control |
| Light Source | LED |
| Intensity | ≥40,000Lux |
| Arm Extension | 1100mm |
| Up and Down Adjustment | ±150mm |
| Base | 560mm*560mm |
| Foot Switch | Focus |
Main Features
Ophthalmic Operating Microscope

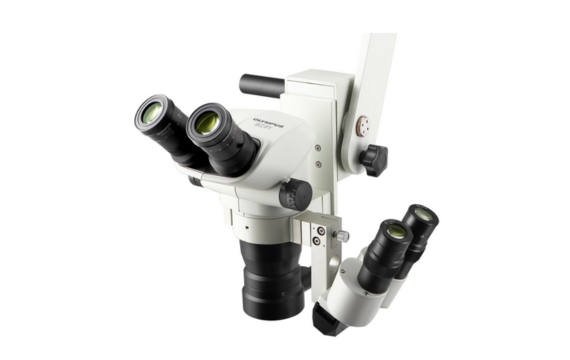

SZ51 Optics from Olympus
Ophthalmic Operating Microscope

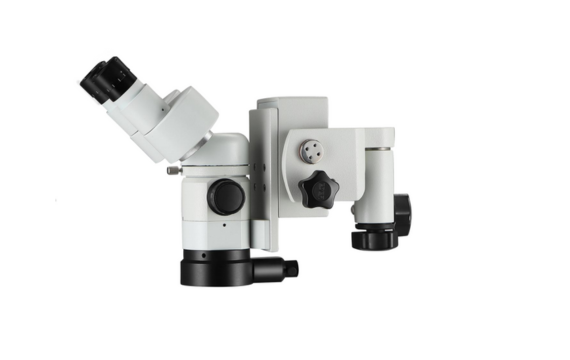

Eder Optics
Ophthalmic Operating Microscope

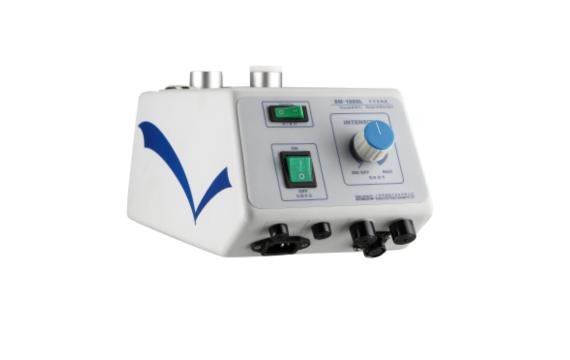

LED Light
What Is Ophthalmic Operating Microscope?
Ophthalmic operating microscope is equipment used in ophthalmology and other minor surgical procedures.
What Are The Components of Operating Microscope?
Ophthalmic operating microscope is a complex microscope amplifier composed of light source condenser, eyepiece and objective lens.
What Are The Features of Operating Microscope?
- Large field of view, clear imaging.
- Coaxial cold light source, deep bright light.
- With an assistant mirror, two people at the same time.
- Foot control fine tuning, light and flexible, easy to operate and carry.
How Many Cartons of Operating Microscope?
The operating microscope is packed in three cartons.
How Much Is the Operating Microscope?
We have different configurations for the operating microscope, so if you want to find you preferred microscope, please let us know your requirements.
