Portable Operation Microscope MS2650
Characteristics
- German Optical Lenses
- Comfortable LED Illumination
- 0~180 Degree Adjustable Binocular
- Image Inverter and BIOM Available
Technical Data
| Optics | Optic Lens | Schott® Lens |
| Eyepiece | 12.5X Wide-angle Eyepiece (10X Optional) | |
| Inclinable Binocular | 0~180°Adjustable | |
| Objective Lens | F=200 | |
| Diopter Adjustment | ±7D | |
| Pupil Distance | 54mm~76mm | |
| Magnification | 5 Steps by Drum Rotation | |
| Steps of Magnification(Y) | 0.4X, 0.6X, 1X, 1.6X, 2.5X | |
| Total Magnification | 4.3X, 6.8X, 10.6X, 16.9X, 26.5X | |
| Field of View Diameter | 52mm,33mm, 21mm, 13mm, 8.3mm | |
| Focus | Motorized, Focus Range 40mm; 5 Optional Objective Lenses: F200; | |
| Illumination | Light Source | LED with Life Time＞60,000 Hours |
| Filter | Red Free, Retinal Protection Filter | |
| Red Reflex | Aspheric Design | |
| Light Control | Yes | |
| Input Voltage | AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz | |
| Package | Packing | 1 Carton, 0.16CBM, with Travel Case |
| Total Weight | 33Kgs | |
| Foot Switch | Z Axis Up and Down, Reset |
Main Features

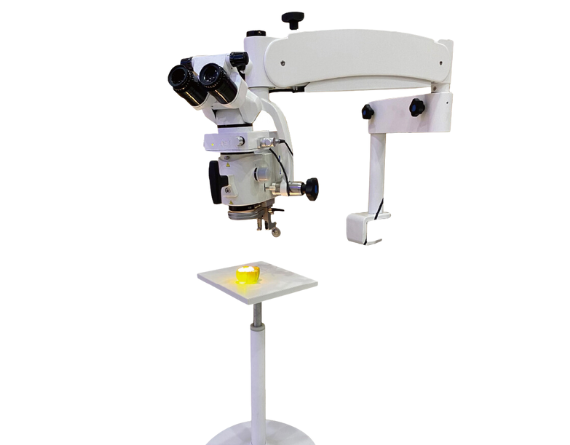

Portable Ophthalmic Operating Microscope

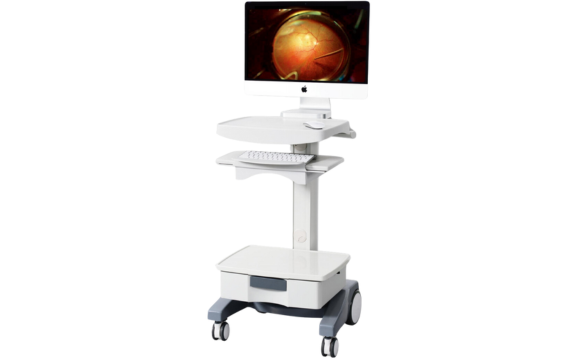

4K Video Recording System

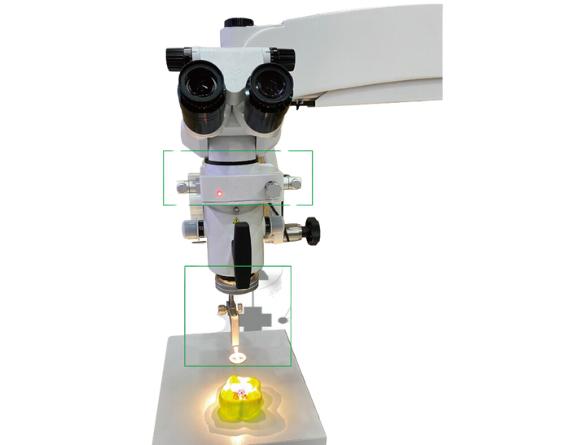

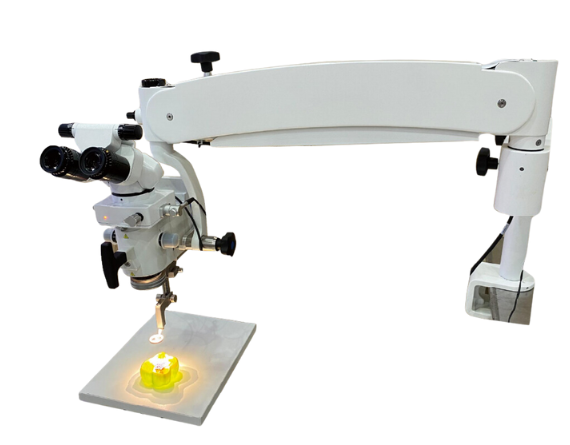

Portable Ophthalmic Operating Microscope

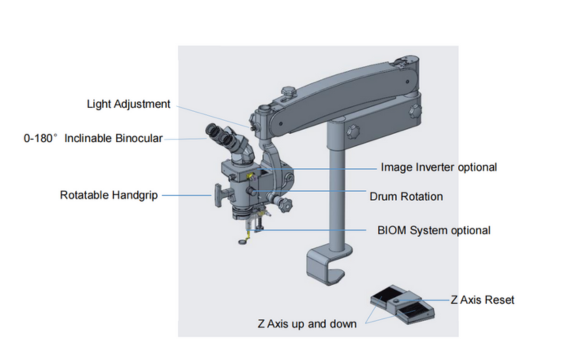

Portable Microscope Components

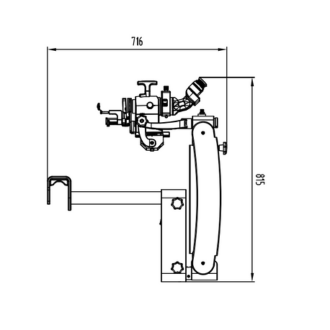

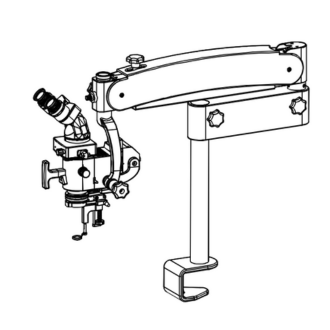

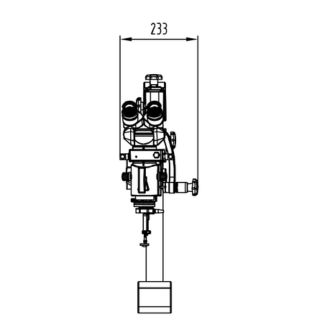

Structure of Portable MS2650 Microscope (3)
What Is Advantage of the Portable Ophthalmic Microscope?
The first advantage of this portable ophthalmic microscope is the cost performance. It is much cheaper on price than normal microscopes.
Where To Install the Microscope?
The portable ophthalmic microscope is very easily to mount on a table or a desk.
What Is the Weight of the Microscope?
The weight is 33kg.
How Many Cartons of the Portable Microscope?
The portable microscope is packed in one carton.
How Much Is the Portable Microscope?
If you are interested in this portable microscope, please contact us for more details.
