Portable Slit Lamp Microscope
-
Portable and Easy Operation
-
High-brightness LED Lighting Source
-
Low Power Consumption and Long Service Life
-
Light in Weight and Easy to Carry Out
-
Rechargeable Battery
-

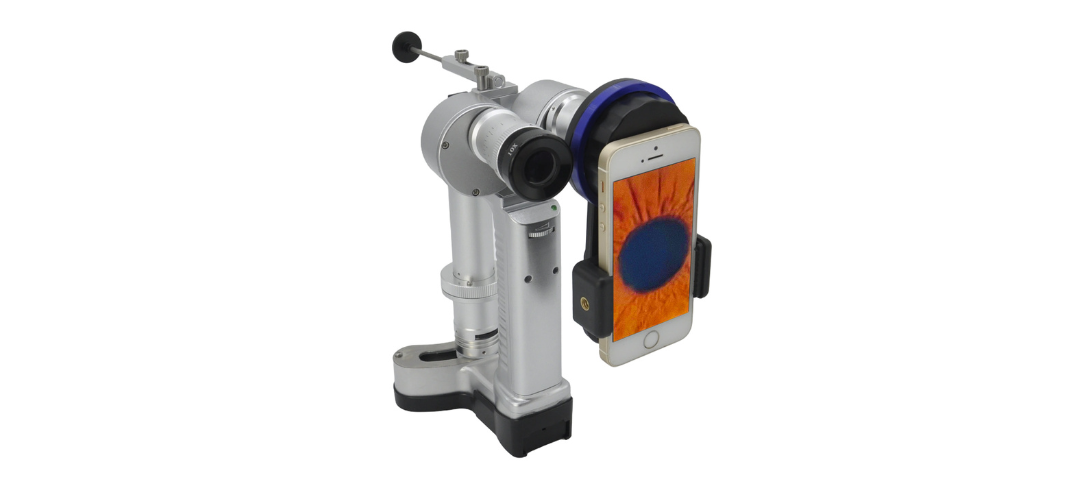

Options for Mobile Phone Adaptor

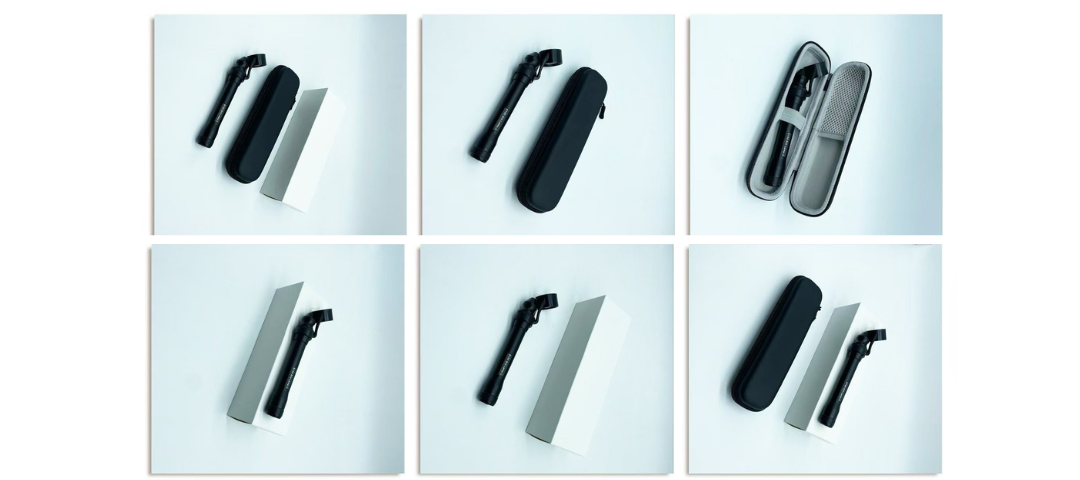

Portable Slit Lamp Package and Configuration
- Portable Slit Lamp Main Unit
- Focus Pole
- Aluminum Case
- Rechargeable Battery
- Forehead Rest
- Manual
Portable Slit Lamp Details
Portable Slit Lamp SL19
Microscope part:
Type: Converging microscope
Magnification: 10× 16 ×
Objective magnification: Two steps
Slit lamp part:
Slit width: 0.15mm, 0.5mm, 0.8mm and 1.6mm slits, 12mm circle and a 1mm square
Slit Angle: +/-60 °

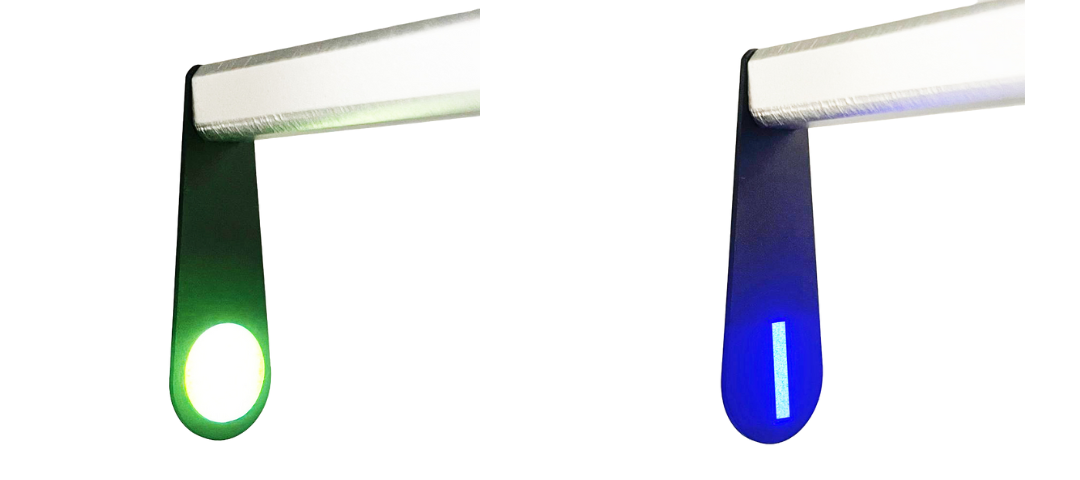

Filter: Blue, redfree, neutral density 0.8 and clear
Illumination source: 4V 500mA Led
Input: AC 110/220V± 10% / 50Hz/60Hz ± 1Hz
Output: 12.0V DC 2.0A
Battery: 7.4V 1600mAh rechargeable Lithium battery
Total weight: 800g
Portable Slit Lamp SL5
Type: Binocular Crossed Stereo
P.D Adjustment: 49mm-73mm
Magnification: 10× 16 ×
Objective Lens: 1x
Diopter Compensation: ±5D
Spot Diameter: 0.5mm, 3mm, 5mm, 10mm
Slit width: 0-10mm Continuously Adjustable
Slit Rotating Angle: Horizontal±30°
Filter: Heat Absorption, Red Free, Cobalt Blue, Grey
Illumination source: LED
Input: 7.4V 750mAh
Working Distance: 80mm
Maximum Illumination of Slit Spot: ≥2500LX
Battery: Rechargeable Lithium battery
Total weight: 600g
Related Products
About The Portable Slit Lamp
A handheld Slit Lamp is a medical device commonly used for ophthalmic diagnostic examinations.
It consists of a lamp source and a microscope, which can enlarge and clearly show the eye structure by creating a slit effect.
The lamp source of the hand-held slit-lamp uses high brightness white light, which can prevent light pollution and interference.
By fine-tuning the position of the microscope and lamp, and adding the corresponding filter and Angle adjustment equipment, the doctor can carefully examine the small structure and abnormal conditions in the eye.
The slit lamp examines corneal inflammation, cataracts, scleritis and glaucoma, etc.
