Exam Chair and Stand MS2000
Features
-
- Motorized Moves of Chair and Stand: Up and Down Elevation, Recline, Rotation All Goes Electrically.
- Adjustable Phoropter Arm Height: the Phoropter Arm Height Can Be Adjusted As Well to Cater to the Exam for Taller People.
- 4 Buttons to Control the Move of Chair and Stand: 4 Buttons Located on the Slit Lamp Arm Right Close to the Doctor for Easy Reach and Operation.

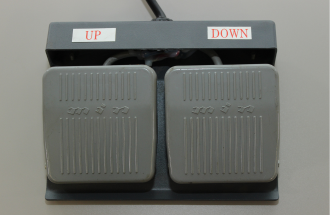

- Foot Pedal Available to Free Operation by Hands.
- 3 Charging Wells as Standard Configuration for Charging the Ophthalmoscope and Retinoscope.

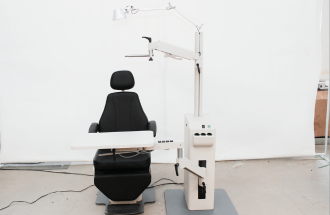

About the Exam Chair and Stand MS2000
We are happy to introduce the new model ophthalmic exam chair and stand with a totally new design and comprehensive functionality. Besides incorporating all of the current existing functions available in the market, the main move of the chair and stand are all going electric, like the recline, rotation, up and down elevation. now just with one touch of the buttons, then moves will go automated. Rotation in particular, will dramatically change the way the chair is used to be rotated, which will bring the exam operation up to a new level of ease and comfort.
Adopted with the heavy duty actuators, the chair can support the weight upto 300kgs, which can cover the majority needs.
Emergency brake lever is equipped to prevent the table to hurt the patient during the up and down elevation.
Three charging wells available to meet the needs of the massive uses of ophthalmoscope and retinoscope during the daily exam.
Technical Parameters
| Stand Specifications | Table Top Lifting Stroke | 250mm ±5mm |
| Table Top Rotation Range | 0-180° | |
| Table Top Height | 730-980mm ±10mm | |
| Input Voltage | 120V AC ±10%，~60Hz, 6A | |
| Power | 500VA | |
| Charger | 3.5V 150mA | |
| Ceiling Lamp Bulb | E27-9W 110-220V AC(Dimmable) | |
| Net Weight | 110kg | |
| Chair Specifications | Seat Height | 500-660mm ±10mm |
| Rotation Range | 0-90° | |
| Recline Angle | 97°-160° | |
| Input Voltage | 120VAC ±10%，~60Hz, 6A | |
| Power | 300VA | |
| Fuse | 6A 125VAC | |
| Net Weight | 135kg |
MS2000 Details
- Gallery
