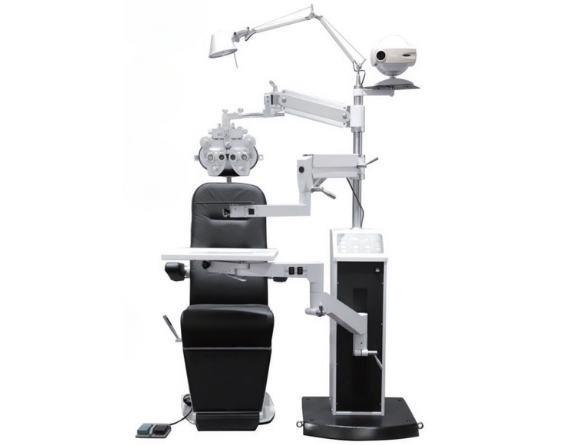

Motorized Table M700A
Features
- Recline Bar Control Available to Fully Tilt the Chair to a Maximum Angel of 90°
- Upholstered Armrests for Comfort
- 360° Rotation Chair
- Fully Rotary and Counter Balanced Slit Lamp Arm
- Overhead Lamp with 7 Levels of Adjustable Brightness
- 3 Charging Ports for Multiple Devices Charging
- 3 Ways to Control the Elevation of the Table
- Foot Pedal Included
Technical Parameter of Motorized Table M700A
| Phoroptor Swing Arm | Swing Angle(up and down) | ±30° |
| Rotary Arm | Rotation Angle0-300° | |
| Up and Down Moving Range | 900mm(Lowest Point)+600mm | |
| Max Load | 30kg | |
| The Curvature of Instrument | Swing Angle(up and down) | ±40° |
| First Rotary Arm Rotation Angle | 360° | |
| Second Rotary Arm Rotation Angle | 0-300° | |
| Tray Rotation Angle | 360° | |
| Up and Down Moving Range | 780mm(Lowest Point)+600mm | |
| Max Load | 30kg | |
| Project Arm | Arm Rotation Angle | 360° |
| Up and Down Moving Range | 1030mm(Lowest Point)+500mm | |
| Max Load | 10kg | |
| Table Size | 350mm*200mm*25mm | Can Be Customized Maximum Size to be 700mm*400mm*40mm |
| Max Load | 50kg | |
| Table Movement Range | Semicircle Radius | 824mm |
| Vertical Movement | 716mm(Lowest Point)+300±5mm | |
| Installation Dimension | 1884mm*1316mm*1663mm(Tabletop and Lighting Excluded) |
Technical Parameters of Motorized Table M700C
| Size of Tabletop | 1130*520mm(44.5’’*20.5’’) |
| Elevation Range of Table | 680-880mm(26.8’’-34.6’’) |
| Elevation Range of Chair | 520-670mm(20.5’’*26.4’’) |
| Elevation Range of Phoropter Arm | 1300-1650mm(51.2’’-64.9’’) |
| Phoropter Rotation Degree | 0-90° |
| Table Rotation Degree | 0-90° |
| Charging Port | 2 pcs for Ophthalmoscope |
| Top Lamp | 9W/220V LED |
| Fuse | 6A 250VAC |
| Rating Input Voltage | 220V/50Hz or 110V/60Hz |
| Max Input Voltage | 300VA |
| Net Weight of Whole Table | 180kg(396LB) |
| Net Weight of Chair | 50kg(110LB) |
Features of M700C Motorized Table
Motorized Table
M700C
- Specially Designed Swiveling Equipment Holder for Auto Refractometer and Auto Phoropter Control Board
- Auto Elevation Linear Phoropter Arm
- Easy Reach to Trial Lens Set Holder and Control Panel
- Safety-stop Mechanism guarantees Patients Safety
Pictures of M700C Motorized Table
Can you Customize Table Size?
Yes, of cause we can customize tables for our customers. Well, we also have volume requirement. Please contact us now if you want to customize your own tables and chairs.
How To Deliver the Tables?
As the tables are heavy and large in size. We will recommend shipping by sea to save your cost.
Do You Have MOD Requirement?
No, we do not have Minimum Quantity Order Requirement. We also sell if you order only one piece. But the shipping cost will be high.
What Is The Payment Conditions?
100% prepayment is necessary before shipping. Well for bulk order, we also can discuss the prepayment rate.
Do You Offer Sample Price Product?
Yes, sure, we can offer sample price if you want to check the quality. Please let us know which model you are interested in.
