Wire Harness
Características
- Extremely Wide Application in Any Electrical Devices and Equipment
- Various Styles for Options to Meet Different Needs
- Environmental Protection and Resistant to High Temperature
- Optional Waterproof Material
- Available to Connect Dupont Harness
Harness Terminal
Principal Características

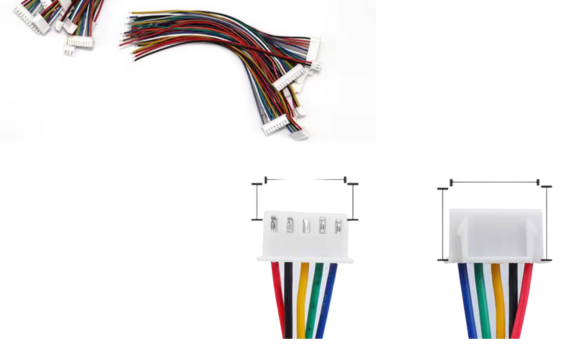

SH1.00MM Space Termimal Cable/Electrical Cable
|
2P A=3.00 B=5.00 |
3P A=4.00 B=6.00 | 4P A=5.00 B=7.00 | |
|
5P A=6.00 B=8.00 |
6P A=7.00 B=9.00 | 7P A=8.00 B=10.00 | |
| 8P A=9.00 B=11.12 | 9P A=10.00 B=12.00 |
10P A=11.00 B=13.00 |
|
|
11P A=12.00 B=14.00 |
12P A=13.00 B=15.00 | ||
1.50MM Space Termimal Cable/Electrical Cable
|
2P A=3.40 B=4.40 |
3P A=4.90 B=5.90 | 4P A=6.40 B=7.40 | |
| 5P A=7.90 B=8.90 | 6P A=9.40 B=10.40 |
7P A=10.90 B=11.9 |
|
|
8P A=12.4 B=13.4 |
9P A=13.9 B=14.90 | 10P A=15.4 B=16.4 | |
|
11P A=17.9 B=17.9 |
12P A=19.4 B=19.4 | ||
PH2.00MM Space Termimal Cable/Electrical Cable
|
2P A=4.50 B=5.60 |
3P A=6.50 B=7.60 | 4P A=8.50 B=9.60 | |
| 5P A=10.5 B=11.6 | 6P A=12.5 B=13.6 |
7P A=14.5 B=15.6 |
|
|
8P A=16.5 B=17.6 |
9P A=18.5 B=19.6 | 10P A=20.5 B=21.6 | |
|
11P A=22.5 B=23.6 |
12P A=24.5 B=25.6 |
||
XH2.M54M Space Termimal Cable/Electrical Cable
|
2P A=5.70 B=7.30 |
3P A=8.20 B=9.80 | 4P A=10.7 B=12.3 | |
|
5P A=13.2 B=14.8 |
6P A=15.7 B=17.3 | 7P A=18.2 B=19.8 | |
| 8P A=20.7 B=22.3 | 9P A=23.2 B=24.8 |
10P A=25.7 B=27.3 |
|
|
11P A=28.2 B=29.8 |
12P A=22.5 B=32.3 | ||
Parâmetros of Harness
| Modelo | 1.0 to Dupont 1P | 1.25 to Dupont 1P |
| Espaço | Dupont 2.54mm | 2.54milímetros |
| Material | 157128# Cable core, 7psc 0.12 tinned copper, external diameter 0.9 | 157128# Cable core, 7psc 0.12 tinned copper, external diameter 0.9 |
| Length | 20cm | 20cm |
| Color | 2P:Red and Black
3P:Red, black and yellow 4P:Yellow,white,red and black 5P:orange,yellow,white,red and black 6P:green,orange,yellow,white,red and black |
2P:Red and Black
3P:Red, black and yellow 4P:Yellow,white,red and black 5P:orange,yellow,white,red and black 6P:green,orange,yellow,white,red and black |
| Modelo | PH 2.0 to Dupont 1P | XH 2.54 to Dupont 2.54-1P |
| Espaço | Dupont 2.54mm | 2.54milímetros |
| Material | 1007-26AWG# cable core, 7 pcs 0.12mm copper cable, external diameter 1.3mm | 1007-26AWG# cable core, 7 pcs 0.12mm copper cable, external diameter 1.3mm |
| Temperature resistance | 80℃ | 80℃ |
| Electric current | 0.65A | 0.65A |
| Cable Color | 2P:Red and Black
3P:Red, black and yellow 4P:Yellow,white,red and black 5P:orange,yellow,white,red and black 6P:green,orange,yellow,white,red and black |
2P:Red and Black
3P:Red, black and yellow 4P:Yellow,white,red and black 5P:orange,yellow,white,red and black 6P:green,orange,yellow,white,red and black |
Harness Application
It is widely used in any product related to electrical board.
